Preventive maintenance needs to be done regularly and properly on all HVAC units to ensure each unit’s longevity and efficiency. Maintenance is generally performed in the fall for heating units and in the spring for cooling units. Before we get into specific maintenance items, it may be helpful to do a quick review of how a refrigeration system works.

Refrigeration may be defined as the act or process in which work is done to remove heat from one body or enclosed space to another body or location.

HVAC Maintenance

Refrigeration Cycle

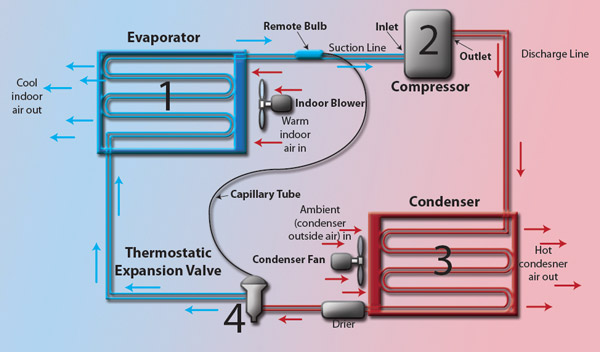

All refrigeration units have four main components: an evaporator (1), a compressor (2), a condenser (3), and an expansion valve (4). Refrigeration systems also use a refrigerant, which acts as a heat-transfer fluid to transfer heat energy from a material at a higher temperature to a material at a lower temperature.

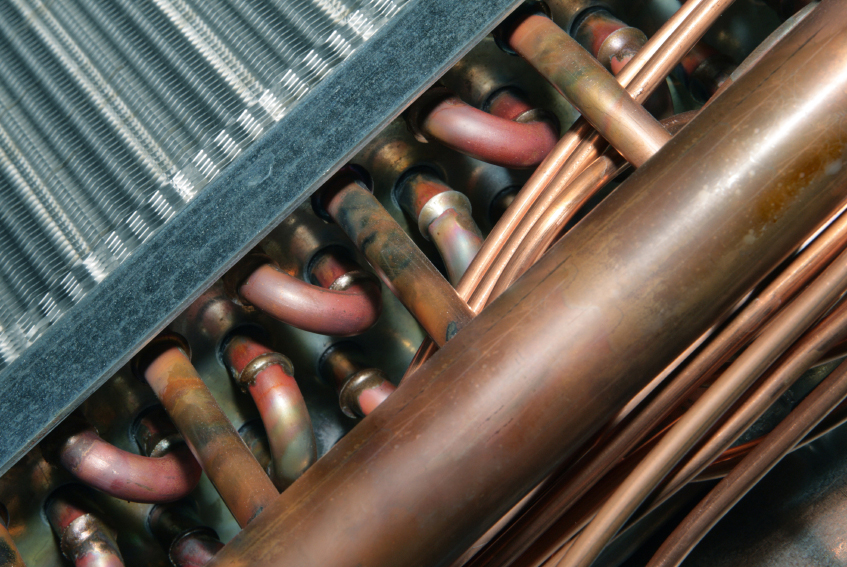

Evaporator The evaporator is a simple bank or coil of thin-walled tubing. During space cooling, the cool refrigerant flowing within the tubing absorbs the heat from the air passing over the tubing. This cooled air is then directed toward the space, while the superheated refrigerant exits the evaporator coil and heads to the compressor.

Compressor The compressor can be described as the heart of the refrigeration cycle. In the compressor, refrigerant is compressed to a high pressure and temperature so that the heat absorbed in the evaporator can be transferred to a cooling medium in the condenser.

Condenser – Hot gases travel through the piping system to the condenser, which can be of either the air-cooled or the water-cooled type. The hot gases from the compressor enter the condenser, where a cooling medium absorbs the heat from the refrigerant and carries it away. As the refrigerant cools and gives up its latent heat, it changes into a liquid and drains through the outlet fitting in the bottom of the condenser.

Expansion Device An expansion device, or flow control device, is a fundamental and indispensable component of any refrigerant system. Its main purpose is to permit the flow of refrigerant into the evaporator at the rate needed to remove the heat of the load and to maintain the proper pressure differential between the high and low sides of the refrigeration system.

Maintenance

Maintenance tasks can be broken down into outdoor units, indoor units, and what to check for during operation.

Units

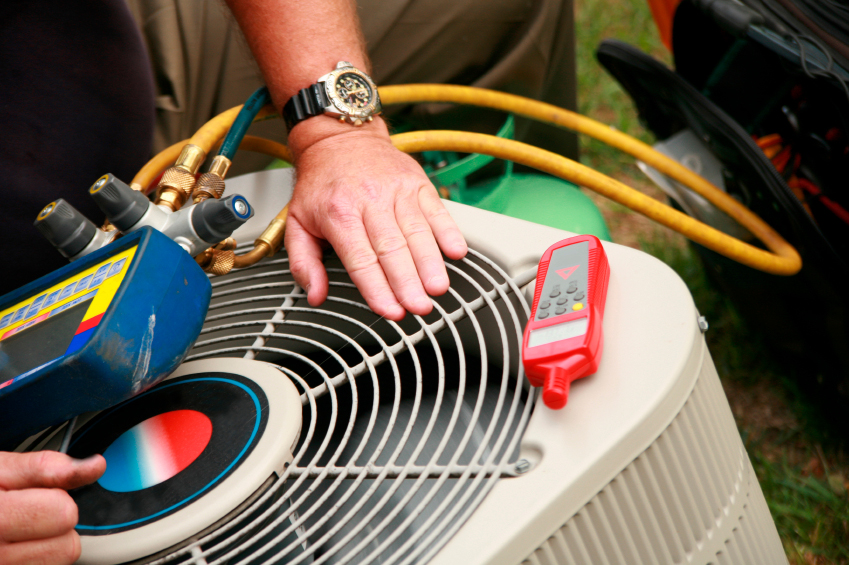

Outdoor Units – In general, with the exception of window air conditioning units, some portion of the HVAC system will be outdoors, usually the compressor and condenser. The following preventive maintenance tasks should be performed on a regular basis:

  • Inspect unit for proper refrigerant level.
  • Clean dirt, leaves, and debris from the inside cabinet.
  • Inspect base pan, coil, cabinet, and control box.
  • Inspect fan motor, fan blades, and compressor for damage.

conditioner



















Indoor Units Usually, the blower, evaporator, and heat exchanger can be found indoors. For these components:

  • Inspect blower assembly, burner assembly, ignition system, and safety controls.
  • On older models, lubricate motor, and inspect and replace fan belt if needed.
  • Inspect evaporator coil, drain pan, and condensate drain lines.
  • Inspect heat exchanger or heating elements.

Clean or replace air filters.

Maintenance

During Operation While the system is operating, perform the following maintenance tasks:

  • Monitor system-starting characteristics and capabilities.
  • Monitor for correct refrigerant charge.
  • Measure outdoor dry bulb, indoor dry bulb, and wet bulb temperature.
  • Check the vent system for proper operation.
  • Monitor the system for correct line and load volts/amps.

Troubleshooting

There are many different things that can go wrong with an HVAC unit. Each problem has a list of possible causes.

Icing – It is never normal to see ice in the summer anywhere on a heat pump or central air conditioner. If you see ice on a heat pump or air conditioner, there could be one of many problems, including:

  • Setting the thermostat too low
  • Bad indoor fan motor
  • Low refrigerant charge
  • Faulty expansion valve
  • Extremely dirty or damaged indoor coil

Constantly Running – A problem that may arise is a constantly running compressor, which usually comes with a high electric bill, lower supply temperatures, and sometimes icing of the outdoor unit. This problem could be caused by:

  • Undersized equipment
  • Low refrigerant charge
  • Bad reversing valve
  • Supplemental heat not working
  • Snow drift against outdoor unit

Poor Temperature Control – Poor temperature control is usually caused by a thermostat that is not properly calibrated. This can be a nuisance because some thermostats, after being calibrated, lose their calibration again shortly afterwards. Brand new thermostats out of the box can do this. This is normally fixed with the use of a digital thermostat. Causes of poor temperature control could include:

  • Draft through the hole in the wall behind thermostat
  • Thermostat not level
  • Direct sun or another heat source hitting thermostat

Poor Humidity Control – Many times, with poor humidity control, the problem is something the owner did, like turning off the humidifier at the end of the last heating season and forgetting to turn it back on again, forgetting to open a damper, or forgetting to open a water valve. If the water panel or pad is clogged, the unit will not humidify properly.

A clogged water valve could be caused by:

  • Bad solenoid valve, motor, or humidistat
  • Humidistat not turned up high enough
  • Bypass damper not opened
  • System taken apart from previous season
  • Water level too low
